Card Counter

Features:

  • Humanization menu design, Mufti-function key(power, menu, confirm) ,Support Chinese and English display, easy to switch;
  • Scanning key direction can be custom for left or right handedness, Divided into A and B key;
  • Color liquid crystal display,HD display count and total;
  • Using the high capacity lithium battery,larger than 800mAh,a life time about 15 hours for Continuous counting card;
  • Using the low power chips,automatic charging management, the charging current limit in 300mA;
  • Offers 2 kinds of charging method : USB supply,General 5V DC charger; ◎Automatic standby / shutdown: if no operations, enter into the standby mode after 18 seconds ,shutdown after one minute;
Share

Related products




Product Overview

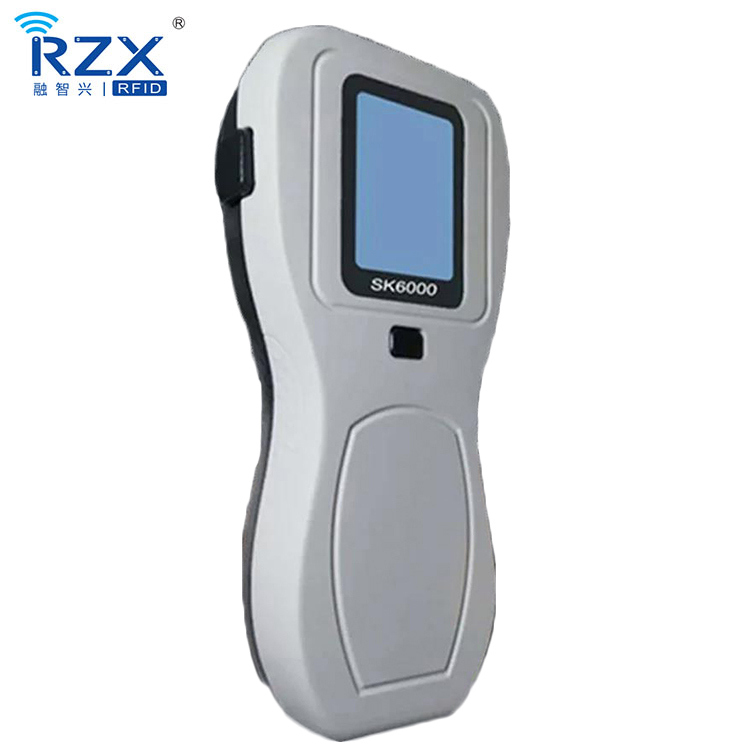

SK6000 Card Counter is designed with advanced low power digital signal processing circuit and the photoelectric principle. High performance, the appearance of fashion, convenience and practicability, good adaptability. SK6000 integrates two sensors which could cross check the counting results, the number will be displayed on the screen only if two values are the same. It can accurately count different material cards in a thickness of more than 0.45mm. It is widely used inside banks, card manufacturing factories, social security, public security, telecommunications, transportation, shopping malls, petroleum and other



Feature:

Flexible accumulation mode: **Automatic Accumulate mode :Under right hand operation mode, press Scanning Key B once to remove the accumulation display, press Scanning key B again to clear the accumulation value.**Manual Accumulate mode : press Scanning Key B to accumulate the number counted, press Scanning Key B for two seconds to clear the accumulation value. **Opposite key operation for left hand operation mode



Technical Parameters

Power requests

Battery :voltage 3.7V,capacity>800MAh

Power consumption

Fully dormant<10uA,working<62mA

Working environment

10℃~40℃; humidity: 30%~90%

Single Counting

1~1999 pieces

Maximum accumulation

99999 pieces

Dimension

168mm×82mm×29mm

Weight

190g
