Laundry Tag（8616U8-7D）
Features：
- More than 200＋washing, 60 bar pressure. Heat resistant up to 200℃.
- Good Consistency, reliability,100% function tested.
- Stitching, Heat sealed pounching, hanging optional.
- Washing product safety certification, MRI Passed. SVHC, ROHS.
- Standard reading distance of more than 6 meters.
- Up to 3 Million tags monthly Capacity.
- Standard products suitable for European and American frequencies.
- Support Data printing & Encoding.
Categories:
Share
Related products
Description

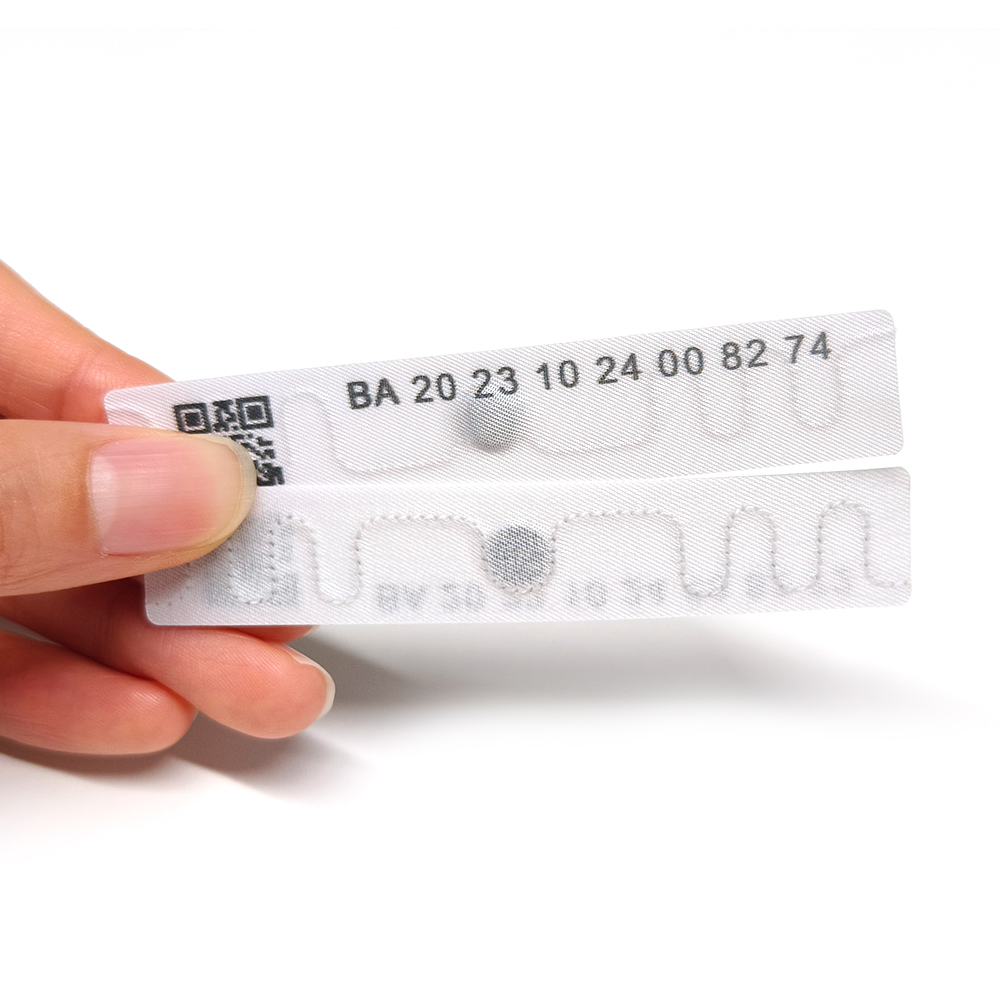

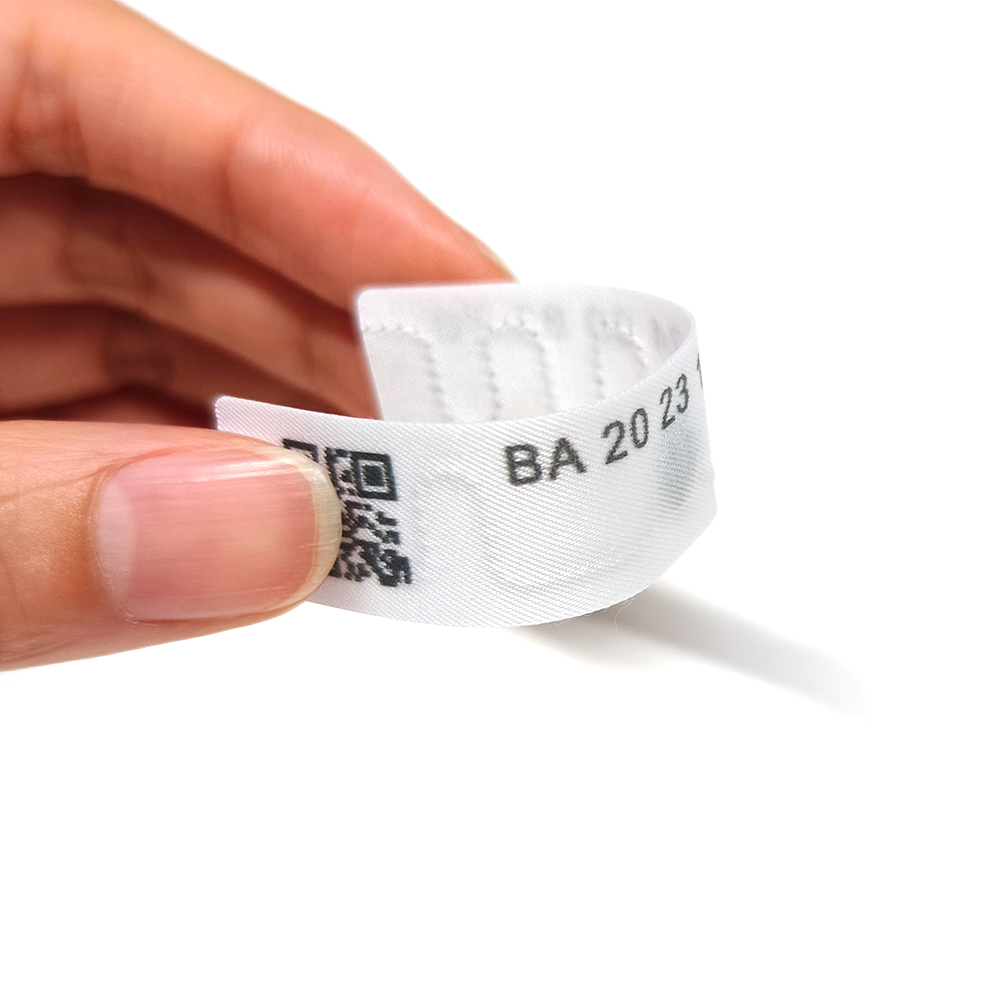

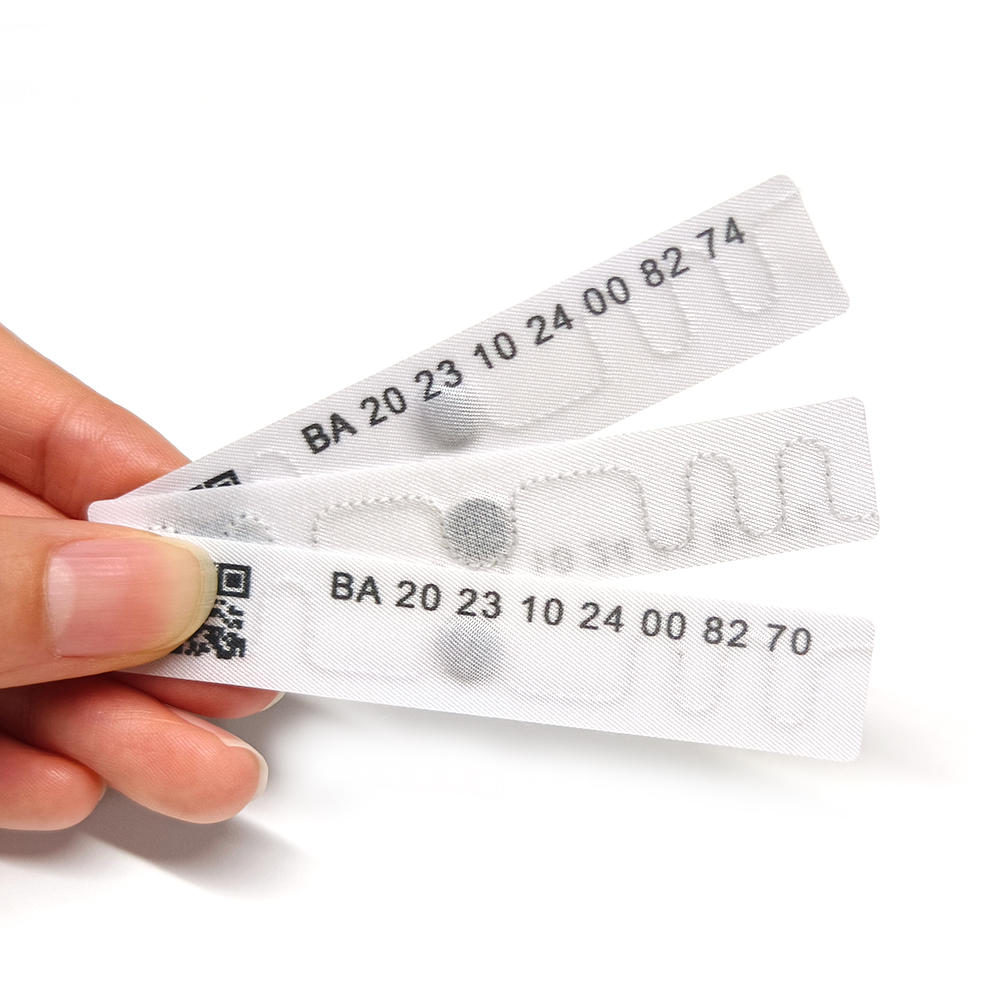

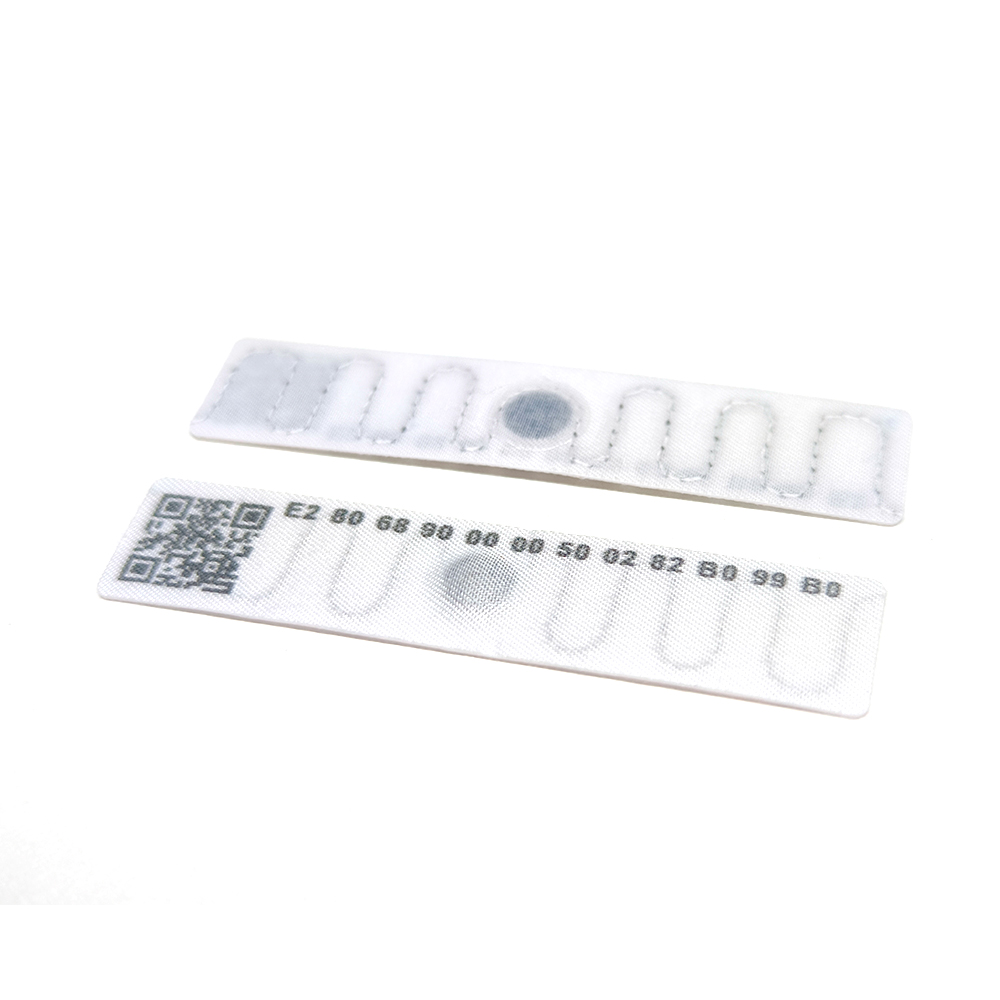

LAUNDRY TAG
UHF Textile Laundry Tag,suitable for clothing and linen washing, it is installed on the linen, it can withstand 180 degrees of high temperature ironing, resistant to more than 200 linen washing.
ADVANTAGES:
- More than 200 wash cycles.
- Multi-label inventory recognition rate.
- Support Data printing & Encoding.
- 100% function tested.
MAIN FEATURES:
- Can customize size and material for customers.
- High temperature resistant material.
- Can be lasered with barcode.
- Resistant to waterproof.
| Compliance | EPC Class1 Gen2; ISO18000-6C | ||
| Frequency | 860~960 MHz (Can customize frequency) | ||
| Chip | NXP UCODE 8 (7MM DFN) | ||
| Memory | EPC | 128 Bits | Read & Write |
| TID | 96 Bits | Read Only | |
| User | 0 Bits | Read & Write | |
| Dimension | 86(L) x 16(W) x 1.8(H)mm ±0.2mm (Can customize the sizes) | ||
| Storage Temperature | -40℃~ +85 ℃ | ||
| Storage Humidity | 5%～95% | ||
| Polarization | Linear polarization | ||
| Drop test | One meter height 200times drop tests Passed | ||
| All Liquid detergent Test | Passed | ||
| High/low temperature cross test | -40 ~ +120 7 times high/low temperature cross cycle test, total 2 days Passed | ||
| PH Test | 36% PH TEST Passed | ||
| Remark | Applicable to European and American frequencies | ||
APPLICATIONS:
- Linen tracking and identification
- Washing Times Record
- Classification and sorting of linen
- Linen stock lots management
- Washing data statistics and analysis
- Industrial Laundry Management
- Hospital Textile Management
- Garment washing tracking
- Intelligent supervision of cleaning services
- Special-purpose garments management
