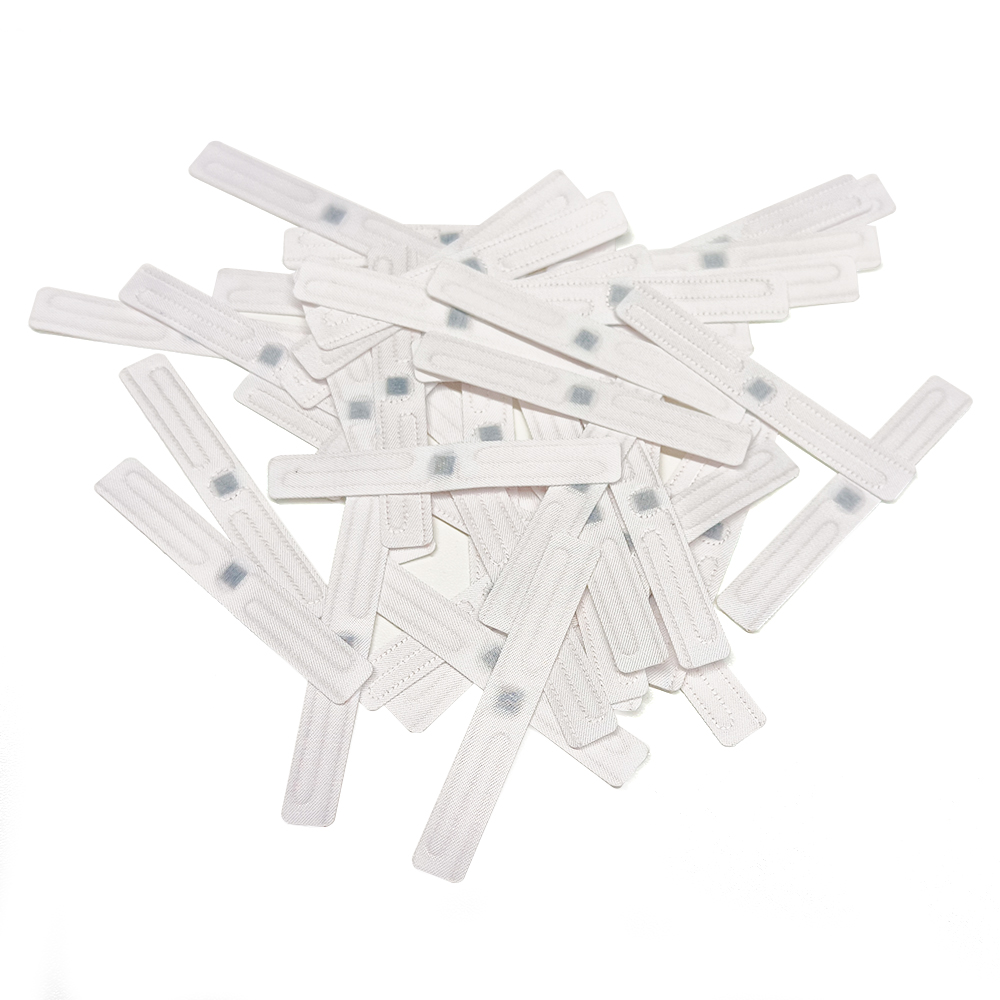

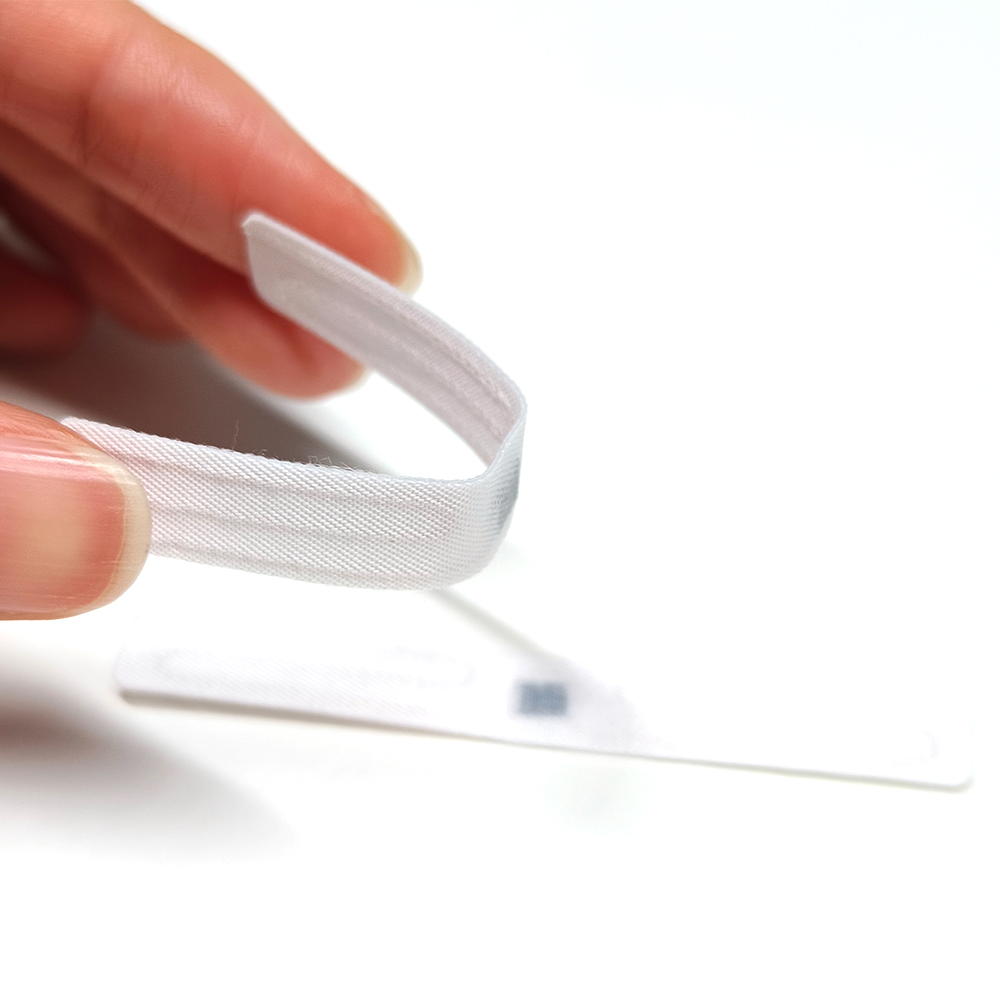

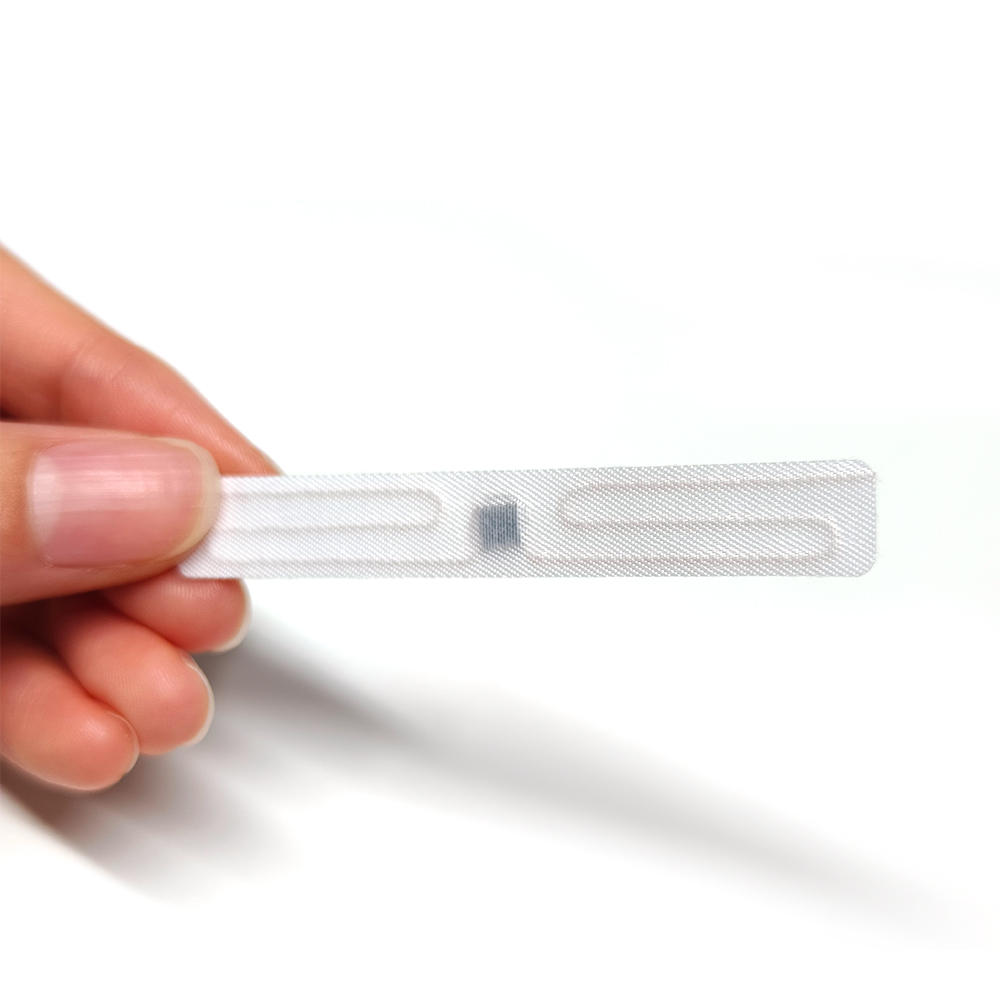

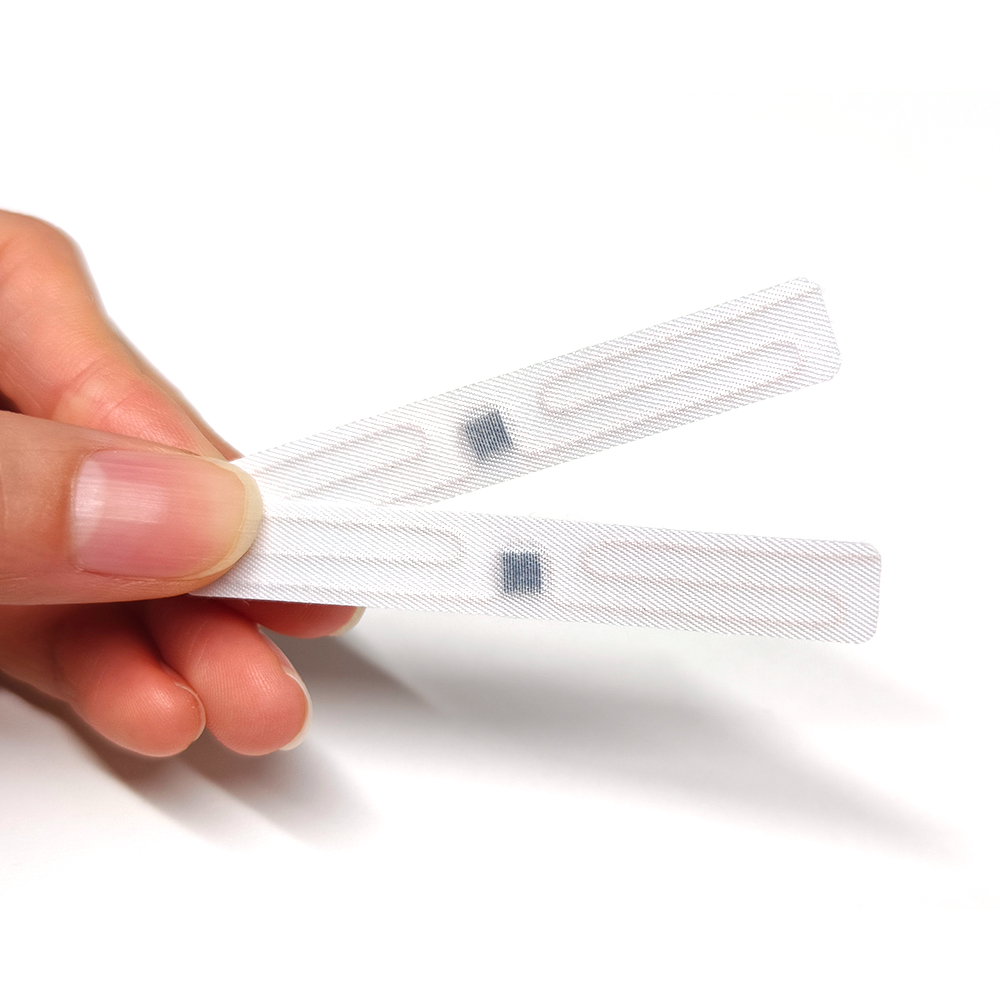

Laundry Tag(7010U8-4D-M)

Features:

  • More than 200+washing, 60 bar pressure. Heat resistant up to 200℃.
  • Good Consistency, reliability,100% function tested.
  • Stitching, Heat sealed pounching, hanging optional.
  • Washing product safety certification, MRI Passed. SVHC, ROHS.
  • Standard reading distance of more than 6 meters.
  • Up to 3 Million tags monthly Capacity.
  • Standard products suitable for American frequency.
  • Support Data printing & Encoding.
Share

Related products




LAUNDRY TAG
UHF Textile Laundry Tag,suitable for clothing and linen washing, it is installed on the linen, it can withstand 180 degrees of high temperature ironing, resistant to more than 200 linen washing.


ADVANTAGES:

  • More than 200 wash cycles.
  • Multi-label inventory recognition rate.
  • Support Data printing & Encoding.
  • 100% function tested.


MAIN FEATURES:

  • Can customize size and material for customers.
  • High temperature resistant material.
  • Can be lasered with barcode.
  • Resistant to waterproof.



Compliance EPC Class1 Gen2; ISO18000-6C
Frequency 860~960 MHz  (Can customize frequency)
Chip NXP UCODE 8 (4*4MM DFN)
Memory EPC  128 Bits  Read & Write
TID  96   Bits  Read Only
User  0   Bits  Read & Write
Dimension 70(L) x 10(W) x 1.2(H)mm ±0.2mm (Can customize the sizes)
Storage Temperature -40℃~ +85 ℃
Storage Humidity 5%~95%
Polarization Linear polarization
Drop test One meter height 200times drop tests Passed
All Liquid detergent Test Passed
High/low temperature cross test -40 ~ +120 7 times high/low temperature cross cycle test, total 2 days Passed
PH Test 36% PH TEST Passed
Remark American frequency, MRI line



APPLICATIONS:

  • Linen tracking and identification
  • Washing Times Record
  • Classification and sorting of linen
  • Linen stock lots management
  • Washing data statistics and analysis
  • Industrial Laundry Management
  • Hospital Textile Management
  • Garment washing tracking
  • Intelligent supervision of cleaning services
  • Special-purpose garments management
